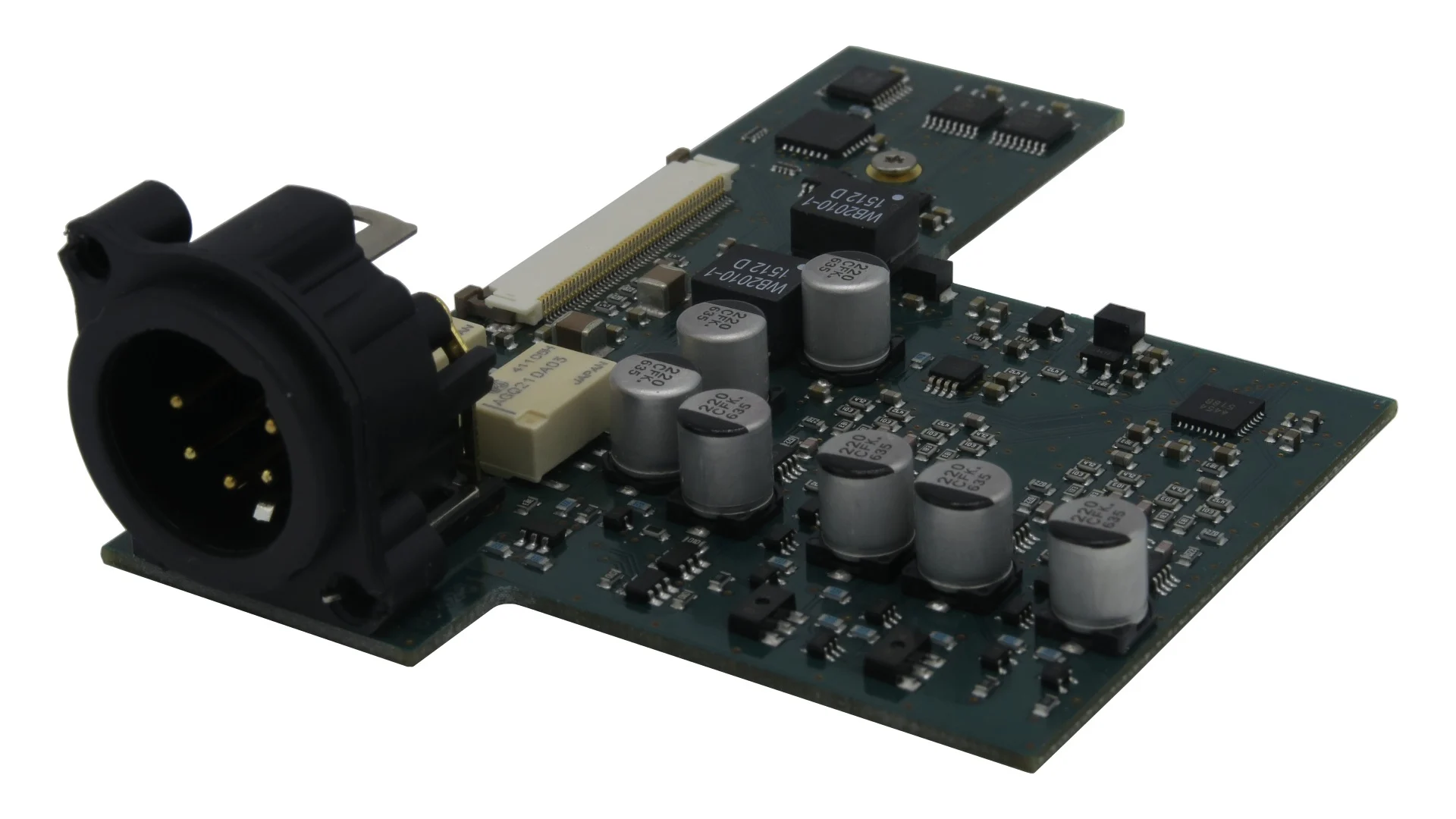

4CH OUT on XLR-5M option card

Description

An optional module offering up to 4 additional output channels on an XLR-5M.

Using the SX-R4+, this module can be freely configured by the user for output either as:

• Two symmetrical analog channels (2 mono or 1 stereo)
• Four asymmetrical analog channels
• Four digital channels on 2 AES outputs

Asymmetrical analog and digital AES channels combination is possible (2+2).

Block diagram (PDF)
